TBVECHI HT03RA100 Electric Rotating Platform 100mm Worm Drive

Description

Product Overview

The HT03RA100 is a high‑precision electric rotating platform designed by TBVECHI for demanding industrial applications. It features a worm‑gear transmission that provides smooth, low‑backlash movement and a large 100 mm bearing scale for accurate angular positioning. The platform supports both stepper and servo motors, includes an RS232 DB9 interface for straightforward controller integration, and offers optional limit and zero functions for enhanced safety and repeatability. Its robust construction ensures long‑term wear resistance, making it suitable for laser machining, 3D scanning, and robot platform integration.

Usage

This rotating platform excels in environments where precise angular control is critical. Typical use cases include laser precision machining stations, high‑resolution 3D scanners, and robotic arms that require stable rotation. Engineers and technicians in manufacturing, research labs, and automation firms will find the HT03RA100 easy to install and program, thanks to its universal RS232 connection and compatibility with standard motion controllers. Its vertical mounting capability allows flexible integration into existing equipment layouts.

Why Choose Us

TBVECHI combines decades of experience in motion control hardware with rigorous quality testing to deliver a platform that balances performance and durability. Each unit undergoes strict inspection of key indicators, ensuring consistent rotation precision and load capacity. Our after‑sales support includes technical assistance, firmware updates, and a one‑year warranty, giving customers confidence in long‑term operation.

Key Features

• Worm‑gear transmission provides smooth, low‑backlash rotation for high‑precision tasks.
• 100 mm bearing scale enables accurate angular positioning and repeatability.

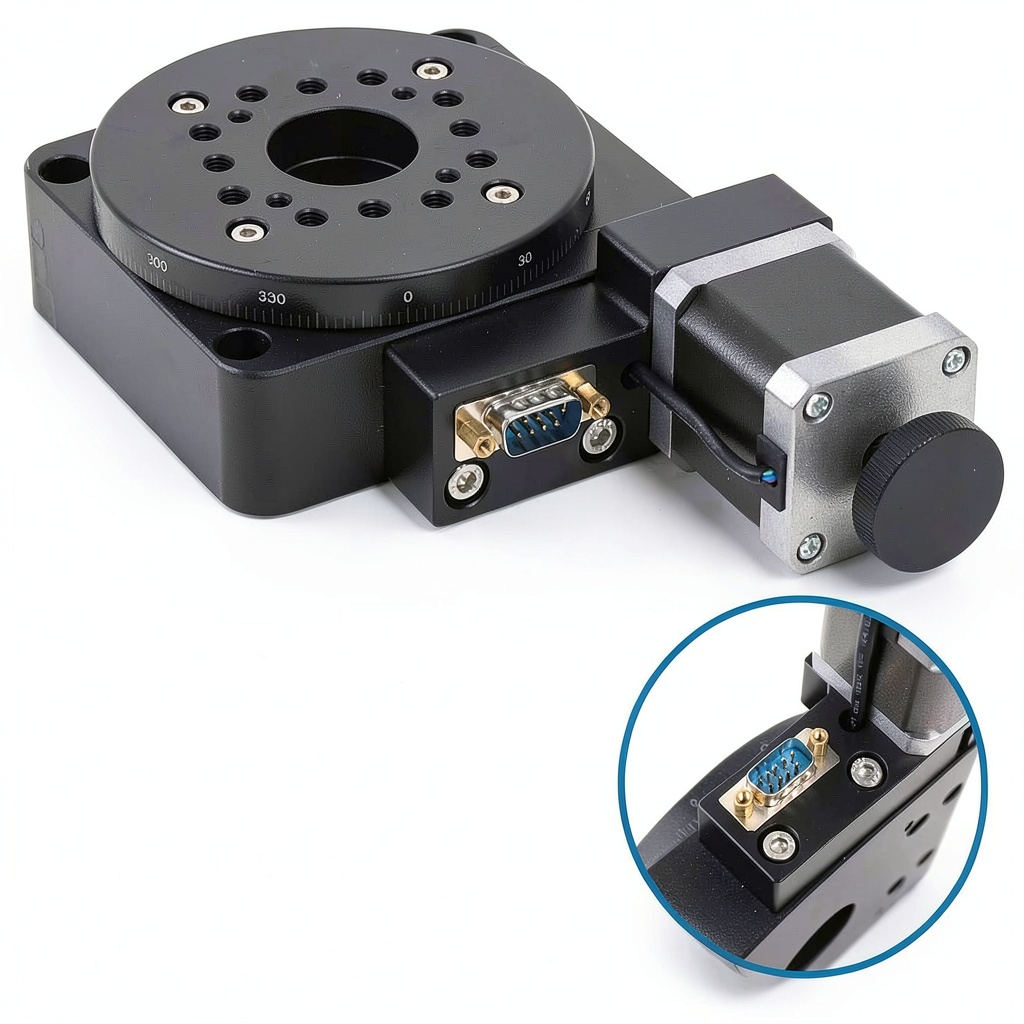

• Universal RS232 DB9 interface simplifies connection to any standard motion controller.
• Optional limit and zero functions enhance safety and positioning accuracy.
• Comprehensive technical support and one‑year warranty ensure reliable after‑sales service.

FAQ

What motor types are compatible with the HT03RA100?

The platform supports both standard stepper motors (1.8°/step) and compatible servo motors, allowing flexibility based on your application requirements.

Can the platform be mounted vertically?

Yes, the HT03RA100 is designed for vertical installation and can be integrated with other stages for multi‑axis configurations.

How do I enable the limit and zero functions?

These functions are optional accessories that can be added during assembly. Once installed, they are configured via the motion controller’s software settings.

What is the maximum load capacity?

The platform’s robust bearing and gear design support a high load capacity, suitable for most industrial tooling and robotic applications. Specific load limits are detailed in the technical datasheet.

Is there documentation for integrating the RS232 interface?

Yes, TBVECHI provides a comprehensive user manual and wiring diagram that guide you through connecting the DB9 interface to common motion controllers.
